When FIFA awarded the 2022 World Cup to Qatar, it set in motion one of the most scrutinised construction programmes in football’s history. Mean daily maximum temperatures during July and August reach 41-42 °C in Doha; the absolute recorded maximum stands at 50.4 °C (July 2010, Qatar Meteorology Department). Qatar’s entire population is smaller than the number of spectators who attended the previous World Cup in Russia. And yet, Qatar committed to delivering not only functional arenas, but venues exceeding international sustainability benchmarks by 30 per cent.

The thermal performance of those buildings would determine whether Qatar succeeded or failed - at a tournament attended by a record 3.4 million spectators in the stadiums, with the final watched by close to 1.5 billion viewers worldwide.

Defining the Problem: Air-conditioning a Desert

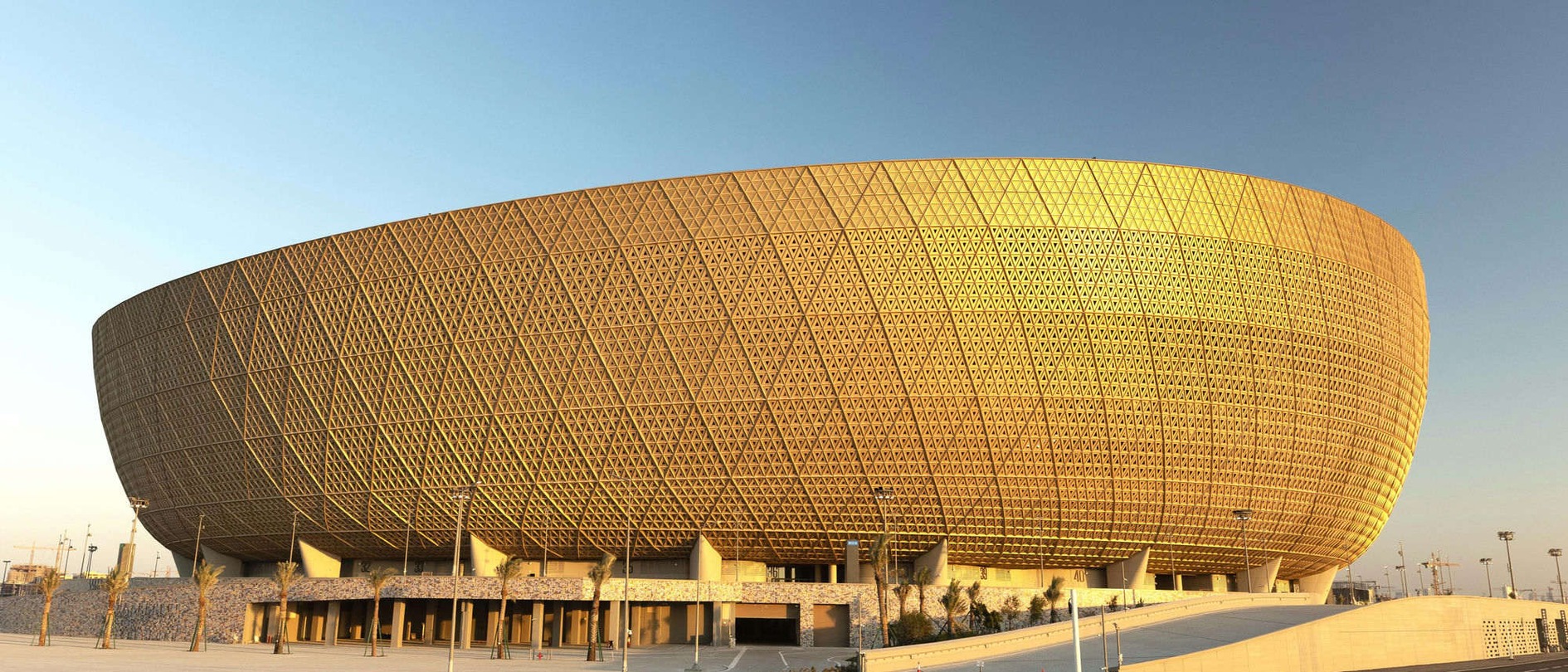

Lusail Stadium (استاد لوسيل) - the tournament’s showpiece venue, hosting the opening ceremony and the final - was required to be simultaneously air-conditioned and partially open-air. In Doha in November, the average daily high remains 29.5 °C. Without high-performance thermal insulation, no air-conditioning system is capable of meeting its design operating parameters.

The original specification called for traditional insulation up to 15-30 cm thick. In a stadium of this complexity, that posed immediate problems:

  • Space conflicts with mechanical, electrical and plumbing (MEP) installations already committed to the structure
  • Application difficulties on steel beams, under bleachers and on congested ceiling voids
  • Programme risk in a schedule already compressed by COVID-19-related delays, where every trade was operating at maximum capacity

Traditional insulation materials could not resolve these constraints simultaneously.

The Solution: 1 mm Instead of 30 cm

Q Green Trading and Contracting W.L.L. - one of Qatar’s leading contractors, retained as the main insulation applicator - selected GWR NANO INSULATION® as the primary insulation material across both stadiums. The justification was direct and verifiable: no other material could achieve the required thermal performance within the available installation space.

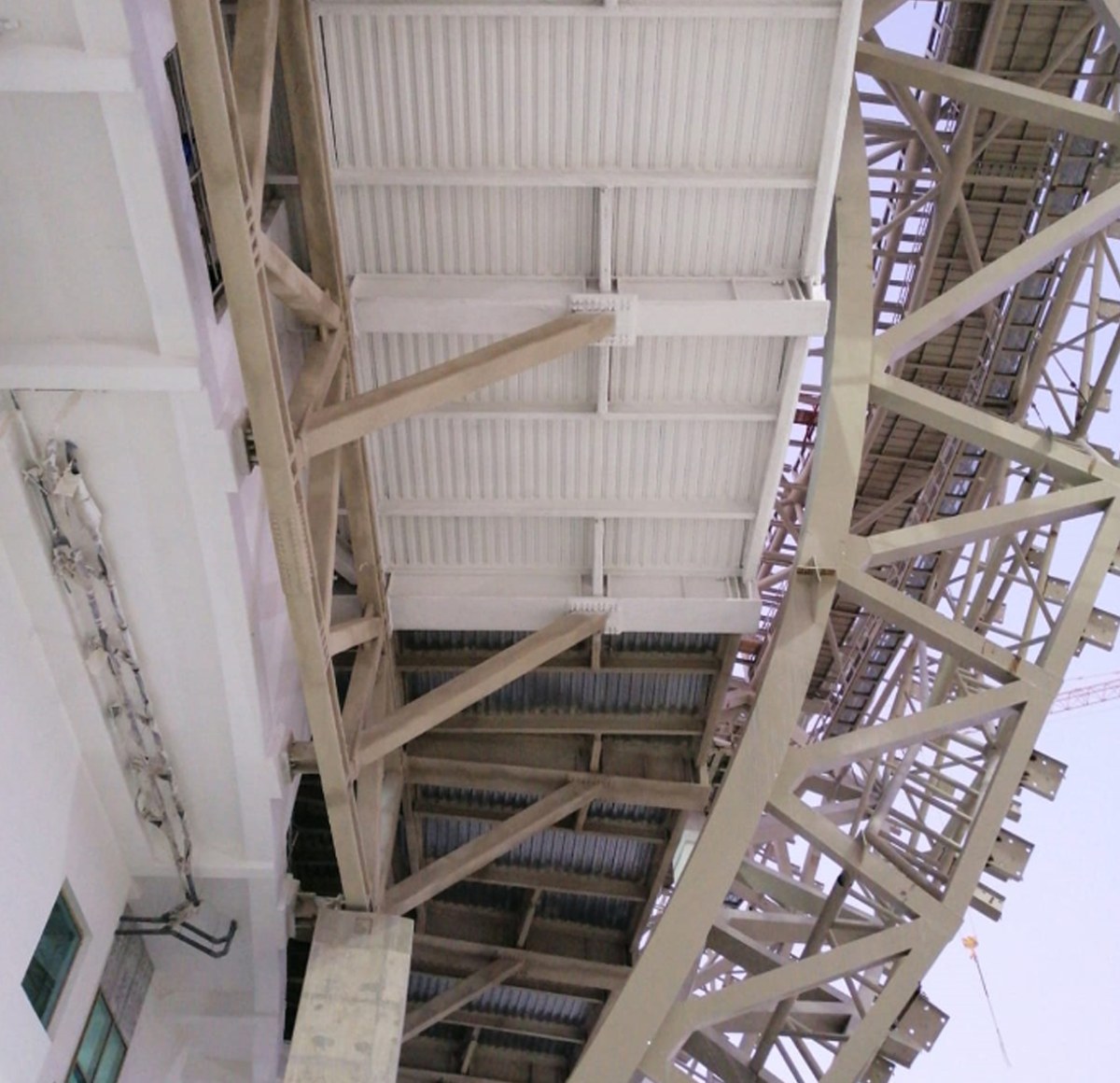

Lusail Stadium (استاد لوسيل) shell structure during construction, Doha, Qatar

At Lusail Stadium (استاد لوسيل)‎ (88,966 capacity), GWR NANO INSULATION® was applied across 78,000 m² - covering block walls, reinforced concrete (RC) and autoclaved aerated concrete (AAC), drywalls, floors and ceilings, metal decking, structural steel beams, and the undersides of bleachers.

At Al Thumama Stadium (استاد الثمامة)‎ (40,000 capacity), a further 35,800 m² were treated - across concrete walls and slabs, metal decking, under-screed and under-precast applications.

Total application: 113,800 m² across two FIFA World Cup venues.

Construction During a Pandemic

The project coincided with the height of the COVID-19 pandemic. Delays imposed by the pandemic compressed the programme for every trade, creating critical deadline pressure across the project. Four factors proved decisive.

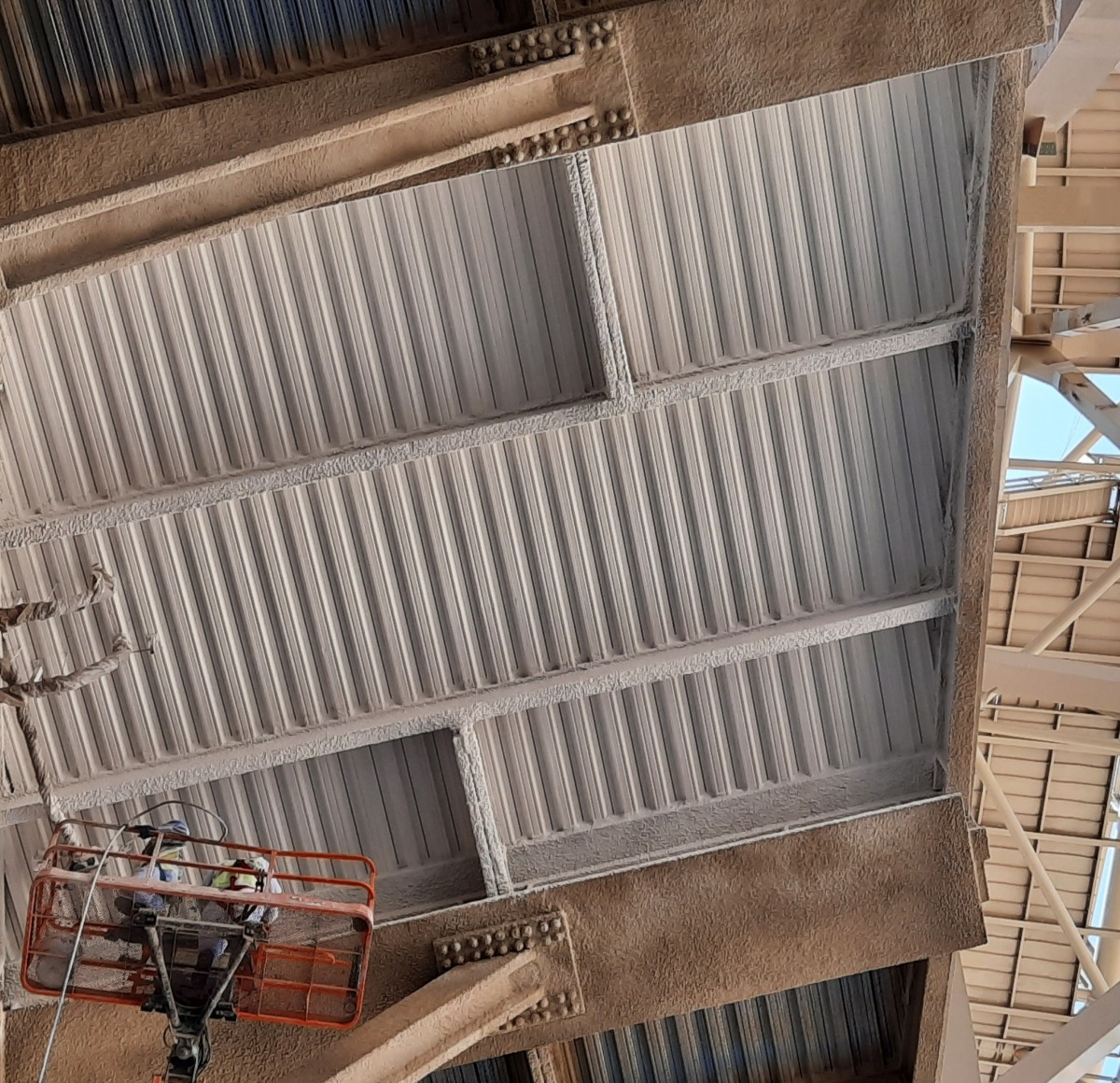

GWR NANO INSULATION® being applied to metal decking inside Lusail Stadium - operatives working from an elevated work platform

  1. Speed of application. GWR NANO INSULATION® requires no structural fixings, no expanding foam and no heavy scaffolding. Q Green met contractual deadlines and avoided penalties on a project where programme compliance carried significant financial consequences.

  2. Safe working conditions. Traditional bulk insulation materials require operatives to work in close physical proximity for cutting, fixing and jointing. GWR NANO INSULATION® is applied by airless spray - operatives maintained the required safety distances throughout the application process.

  3. Resolving congested ceiling voids. After MEP contractors completed duct and pipe installations out of the originally planned sequence, the ceiling voids were too congested for traditional insulation materials. GWR NANO INSULATION® was applied to the roof deck above the finished ceiling - an effective solution that was physically impossible to replicate using any bulk alternative.

  4. Design freedom. Eliminating a 15-30 cm insulation layer resolved multiple design clashes and gave the engineering team the flexibility to accommodate late modifications without programme impact.

What the Client Said

Q Green’s post-project assessment was unambiguous. Working with GWR NANO INSULATION® was described as a “blessing” - reflecting both the scale of the operational challenge and the extent to which the material’s characteristics resolved problems that conventional products could not address.

The client’s conclusion, recorded in the case study: had GWR NANO INSULATION® been specified from the outset, it would have been used across all of Qatar’s World Cup stadiums.

Engineering Lessons

The Qatar World Cup represented an extreme test of thermal envelope performance under simultaneous climatic and programme pressure. The engineering conclusions apply directly to commercial, institutional and industrial construction:

  • Thin-film nano-coating enables thermal performance requirements to be met where structural and MEP constraints preclude the use of bulk insulation materials
  • Application speed is a quantifiable project risk factor - not a matter of convenience
  • Independently verified thermal resistance (R = 4.545 m²K/W per 1 mm layer, TÜV SÜD test report R 04152) enables precise engineering specification in complex installation environments

For Lusail Stadium, the question was never whether the arena could be cooled - it was whether the insulation material could meet the project’s requirements. GWR NANO INSULATION® did.

GWR NANO INSULATION® is distributed in Hungary and the Central and Eastern European region by Summotive® (Summa Technologiae Kft.). TÜV SÜD test reports, the Declaration of Performance and technical data sheets are available on request.
